Advantages of CNC Carbide Turning Insert

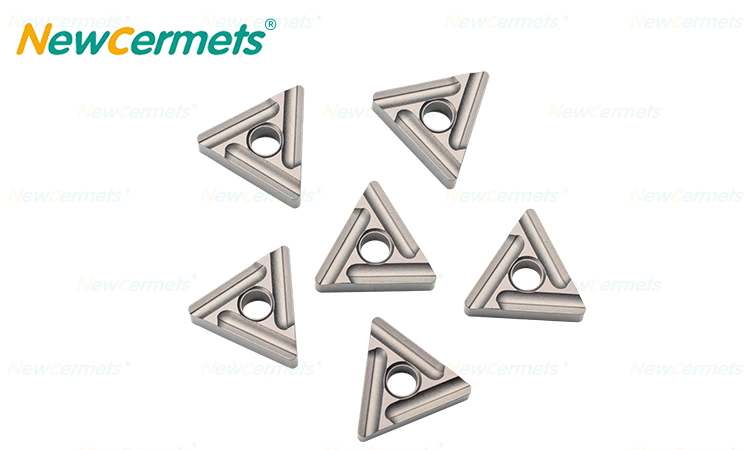

CNC Carbide Turning Inserts can be divided into carbide outer turning inserts and carbide inner hole turning inserts.
CNC Carbide Turning Inserts with the following advantages:
①The reasonable geometry structure of the precision turning carbide machining insert can effectively control the contact length of the chip; the large rake angle design, the cutting edge is sharp, and the cutting is easier; the cutting edge arc accuracy is controlled within 0.02mm, excellent product processing Accuracy; special surface post-treatment process, the finished product has a higher finish; high-strength screw compression ensures the installation accuracy and repeatable positioning accuracy of the blade.
②The LC-geometry carbide turning insert is designed with a unique chip breaker. The large rake angle and relief angle make the cutting edge of the insert sharper, and the cutting is easier under the condition of ensuring the effective chip breaking of the insert; the rake face of the insert is specially The treatment achieves a mirror effect, which greatly reduces the friction between the chip and the rake face of the blade, reduces the possibility of bonding between the chip and the rake face, and makes the chip removal smoother, so that higher surface quality and blade life can be obtained; G The repeatable positioning accuracy of the grade-tolerance insert is high, which effectively suppresses the generation of vibration during cutting; .
③WGF/WGM series wiper carbide turning inserts are high-efficiency inserts for semi-finishing and finishing turning. When the feed rate is doubled, the surface quality remains unchanged; the wiper technology is based on The very fine form combines three curves to form a circular edge, and the wiper tip provides a smaller profile height on the surface formed by the cutting edge, resulting in a flat lake correction effect on the turned surface; when finishing, It can improve the surface roughness of the workpiece, realize the replacement of grinding by turning, and during semi-finishing, the feed rate can be doubled under the condition of ensuring the same surface roughness, and the processing efficiency can be improved.
④EF series carbide turning inserts are specially designed for high viscosity stainless steel and high plasticity difficult-to-machine materials. The rake angle and edge inclination angle are specially designed. Finishing of such materials.
⑤EM series cemented carbide turning inserts meet the requirements of machining viscous materials, and enhance the impact resistance of the cutting edge on the sharp edge, and are suitable for semi-finishing and intermittent machining of viscous materials such as austenitic stainless steel
⑥ER series carbide turning inserts have a special double rake angle wide rib design, which achieves an ideal balance between edge safety and sharpness, effectively reducing cutting resistance and reducing groove wear.
⑦NF/NM series insert carbide turning inserts have sharp chip edge, high strength, smooth groove surface and smooth chip guide; the cutting edge is specially treated to have high wear resistance; it is used in the processing of Ni-based superalloys.
⑧ SF series carbide turning inserts have unique cutting edge design, sharp cutting edge and low cutting resistance, which effectively reduces the vibration of the tool; the insert has high repeatability and positioning accuracy, and can be matched with specially developed carbide tool holders to provide Cutting Tools. High anti-vibration performance to further ensure the processing quality; the blade is treated with special surface to reduce the possibility of chips sticking on the rake face, and the chip breaking performance is excellent to ensure the breaking and discharge of chips, which is more conducive to improving the surface quality of the workpiece; A grade with excellent performance, suitable for finishing a variety of processed materials.
